How to Create a Loading Spinner in CSS with Overlay.

Posted on: Dec 13, 2023

3 mins read


Loading spinners are used to indicate that something is loading on a page or component.

How to Create a Loading Spinner in CSS with Overlay.

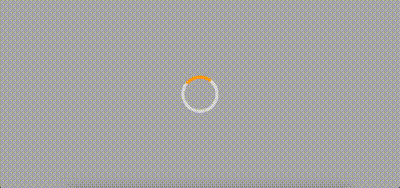

CSS Loading Spinner with Overlay

CSS Loading Spinner with Overlay

Code

html
<div class="loading"></div>
css
.loading {
width: 100px;
height: 100px;
border-radius: 50%;
border: 10px solid #ddd;
border-top-color: orange;
animation: loading 1s linear infinite;
}
@keyframes loading {
to {
transform: rotate(360deg);
}
}

Explanation

The loading spinner is a circle with a border. One part of the border is colored to stand out from the rest of the border. The spinner rotates using CSS animations.

  • The border property adds a border around the element to create the circle.
  • The border-radius property makes the border a circle.
  • We color one part of the border orange using the border-top-color property so that when the spinner rotates, the orange part stands out from the rest of the border, giving the illusion of a spinner.
  • The animation property is used to rotate the spinner.

Adding an overlay to the loading spinner

Adding an overlay to the loading spinner allows you to create a loading spinner that covers the entire page. This is useful when you want to show a loading spinner while a page is loading or when a form is submitting. This prevents the user from interacting with the page while the loading spinner shows.

If you want to add an overlay to the loading spinner, you can do so by wrapping it in a div and adding some styles.

html
<div class="loading-state">
<div class="loading"></div>
</div>
css
.loading-state {
position: fixed;
top: 0;
left: 0;
width: 100%;
height: 100%;
background-color: rgba(0, 0, 0, 0.3);
z-index: 9999;
display: flex;
justify-content: center;
align-items: center;
}
.loading {
width: 100px;
height: 100px;
border-radius: 50%;
border: 10px solid #ddd;
border-top-color: orange;
animation: loading 1s linear infinite;
}
@keyframes loading {
to {
transform: rotate(360deg);
}
}
**View the loading spinner on CodePen**: [https://codepen.io/timonwa/pen/dyaEVbp](https://codepen.io/timonwa/pen/dyaEVbp)

Usage

Instances, where you might use a loading spinner, are

  • When a page is loading
  • When a form is submitting
  • When a component is loading
